INOMAX ACS880 Series – Direct Torque Control AC Drive | Replace ABB ACS880, Siemens S120, Vacon NXP
1. Overview

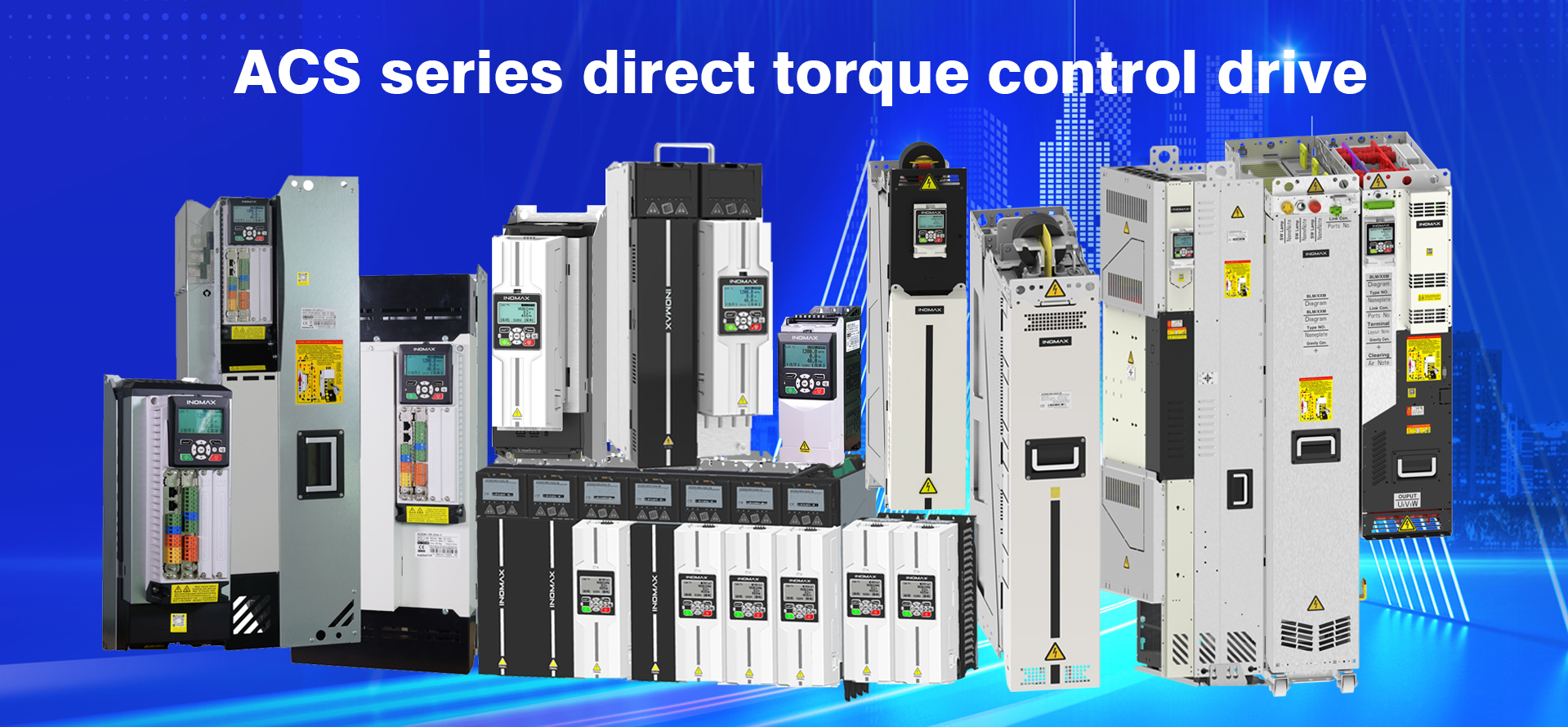

The INOMAX ACS880 series is a high-performance AC drive built on pure Direct Torque Control (DTC) technology. Developed by former ABB, Schneider, and Inovance experts, it delivers the same world-class dynamic performance as top European brands – at a significantly lower cost. With an annual turnover exceeding 200 million RMB (2025) and a defect rate below 1%, INOMAX has become the trusted partner for SANY, XCMG, CRRC, Shougang Group, ZPMC, and many global leaders.
Whether you need a regenerative AFE drive for a dynamometer, a high-torque hoist drive for a mine, or a low-harmonic thruster drive for a ship, the ACS880 provides a true “one-to-one” replacement for ABB ACS880, Siemens Sinamics S120, Vacon NXP, and Yaskawa U1000 – with identical mounting dimensions, same control logic, faster delivery, and 30–50% cost savings.

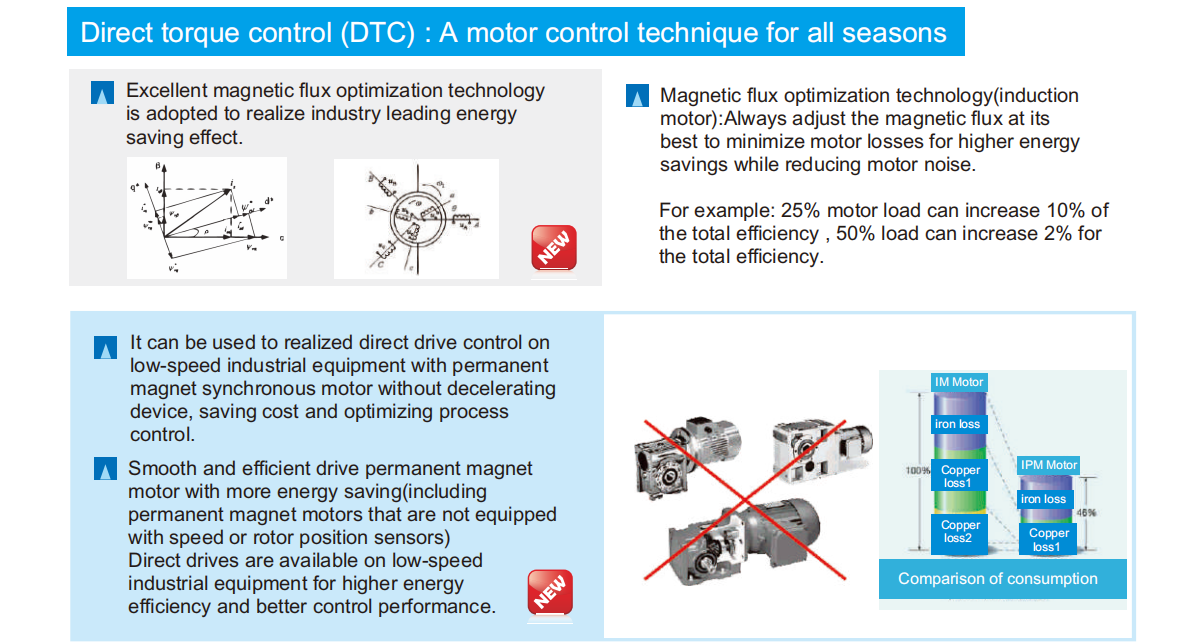

2. Core Technology: Advanced Direct Torque Control (DTC)
| Feature | Technical Specification | Benefit |
|---|---|---|
| Torque response time | <5 ms (0 → rated torque) | Instantaneous load correction, no process lag |
| Sensorless speed accuracy | ±0.5% (10% of motor slip) | No encoder needed in 95% of applications |
| Zero speed torque | 200% torque @ 0 Hz (sensorless) | No mechanical brake required for hoisting |
| Flux optimization | 2–10% energy savings depending on load | Reduces motor losses and noise |
| IGBT junction temp monitoring | Real-time estimation | Prevents thermal damage, extends life |
| Adaptive vibration suppression | Auto-tunes resonance frequencies | Protects mechanical components |
| Built‑in PLC | Yes, free | Eliminates external PLC for logic control |
3. Key Advantages – Solving Industrial Pain Points
| Pain Point | INOMAX Solution | Benefit to Customer |
|---|---|---|
| Competitor drives trip under heavy load | 200% starting torque at zero speed | No need to oversize motor or drive |
| Harmonic distortion causes tripping & transformer heating | Built-in AFE with THDi <3% | Meets IEEE 519, reduces power quality penalties |
| Encoder failure stops production | Seamless switch to sensorless DTC | Increased uptime, safer operation |
| Need multiple drive types for different motors | Controls IM, PM, SynRM, servo, magnetic levitation | One drive for all motor types, reduces spare parts |
| Dust, moisture, vibration cause early failure | Conformal coating (4 layers, German resin), IP54 option | Longer life in harsh environments |
| Software bugs or parameter errors | 100% functional test with real motor | Defect rate <1%, reliable out of box |
4. Industry Solutions
| Industry | Key Applications | Pain Point Solved | INOMAX Advantage |
|---|---|---|---|
| Steel & Metallurgy | Rolling mills, flying shears, downcoilers, uncoilers | Precise speed & torque for thickness control | 0.7% dynamic speed accuracy; replaced ABB ACS800 at Shougang 1580 |
| Mining & Minerals | Mine hoists, belt conveyors, crushers, ball mills | High starting torque, gearbox stress | 200% torque at 0 Hz; SIEMAG TECBERG uses our AFE drives for shaft hoisting |
| Marine & Offshore | Azimuth thrusters, bow thrusters, shaft generators (PTI/PTO), windlasses | Harmonics interfere with navigation, need CCS certification | THDi <3%, CCS certified; ZPMC 4×250kW AFE windlass, COSCO 3600kW thrusters |
| Oil & Gas | Top drives, drawworks, ESP, PCP pumps, artificial lift | Backspin damage, thermal overload | Built-in backspin control, thermal & pressure protection; CNPC partner |
| Dynamometer & Test Benches | Engine dynos, e‑drive test benches, gearbox test rigs | Energy waste, slow response | 4‑quadrant AFE, <5ms torque response, 98% energy feedback; AVL, ZF, Huawei partners |
| Flywheel Energy Storage | High-speed PM motors (20,000–30,000 rpm) | High harmonics, low efficiency | THDi <3%, 98% round-trip efficiency; Vycon, Amber Kinetics partners |
| Cranes & Hoists | Tower cranes, overhead cranes, construction hoists | Load sway, brake wear, encoder failure | Anti-sway, zero-speed brake, master/slave torque sharing; SANY, XCMG >3500 units |
| Cement & Building Materials | Coal mills, kilns, clinker coolers, separators | Start under full load, energy waste | DTC ensures start; Gezhouba Group saved 30% energy on 690V 560kW coal mill |
| Paper & Pulp | Winders, unwinders, slitter-rewinders, coaters | Tension fluctuation, PLC programming cost | 1% torque repeatability, built‑in roll diameter & taper; no external PLC needed |
| Chemical & Petrochemical | Extruders, mixers, compressors, pump stations | ATEX compliance, harmonics | ATEX‑ready motor compatibility, harmonic mitigation |
| Water & Wastewater | Desalination, high-lift pumps, aeration blowers, sludge treatment | Energy cost, reliability | >2000 units to OCP, Essbio, Groundfoss; multi-pump control, sleep/wake |
| Metal Cutting Lines | Slitting lines, cut‑to‑length lines, flying shears, stop‑cut, chase‑cut | Position accuracy, high dynamic response | Electronic cam, position control, high-speed synchronization |
All applications supported by ACS880 modular multi-drive architecture: common DC bus, 12‑pulse rectification, AFE, and liquid-cooled options up to 5000kW.
5. Direct Comparison: INOMAX ACS880 vs ABB, Siemens, Vacon, Yaskawa
| Feature | INOMAX ACS880 | ABB ACS880 | Siemens S120 | Vacon NXP | Yaskawa U1000 |
|---|---|---|---|---|---|
| Control Technology | Direct Torque Control (DTC) | Direct Torque Control | Vector control | Sensorless motor control | Open/closed loop vector |
| Torque response time | <5 ms | <5 ms | 5–10 ms | ~5 ms | ~10 ms |
| Zero speed torque (sensorless) | 200% | 200% | 150% | 150% | 150% |
| Motor types supported | IM, PM, SynRM, Servo, Magnetic levitation | IM, PM, SynRM | IM, servo, linear | IM, PM | IM, PM |
| Built‑in PLC capability | Yes, free | Yes (included) | No (needs SIMOTION) | No | No |
| Special application software | All free (crane, winder, pump, PCP) | Optional, extra cost | Optional, extra cost | Optional | Optional |
| Standard communication | Modbus RTU, CANopen | None (all optional) | Profinet (opt) | Modbus RTU | Modbus RTU |
| AFE 4‑quadrant THDi | <3% | <3% | <5% | <4% | <5% |
| Conformal coating | Standard | Standard | Standard | Optional | Optional |
| Certification | CE, CCS, ISO | CE, UL | CE, UL | CE, UL, EAC | CE, UL |
| Price level | High cost‑performance (30–50% less than ABB) | Premium | Premium | High | High |
6. Product Line & Technical Specifications
| Parameter | Details |
|---|---|
| Power range | 0.75 kW – 250 kW (wall-mounted, IP21/IP20); 45 kW – 1400 kW (cabinet, IP21/IP54); 250 kW – 5000 kW (multi-module/common DC bus) |
| Voltage classes | 208V, 240V, 380V, 415V, 480V, 690V (up to 10kV with step-up transformer) |
| Cooling | Air-cooled (standard, fan reversible); Liquid-cooled (L8 series, for marine/high power) |
| Enclosure options | IP20, IP21, IP54, IP65 |

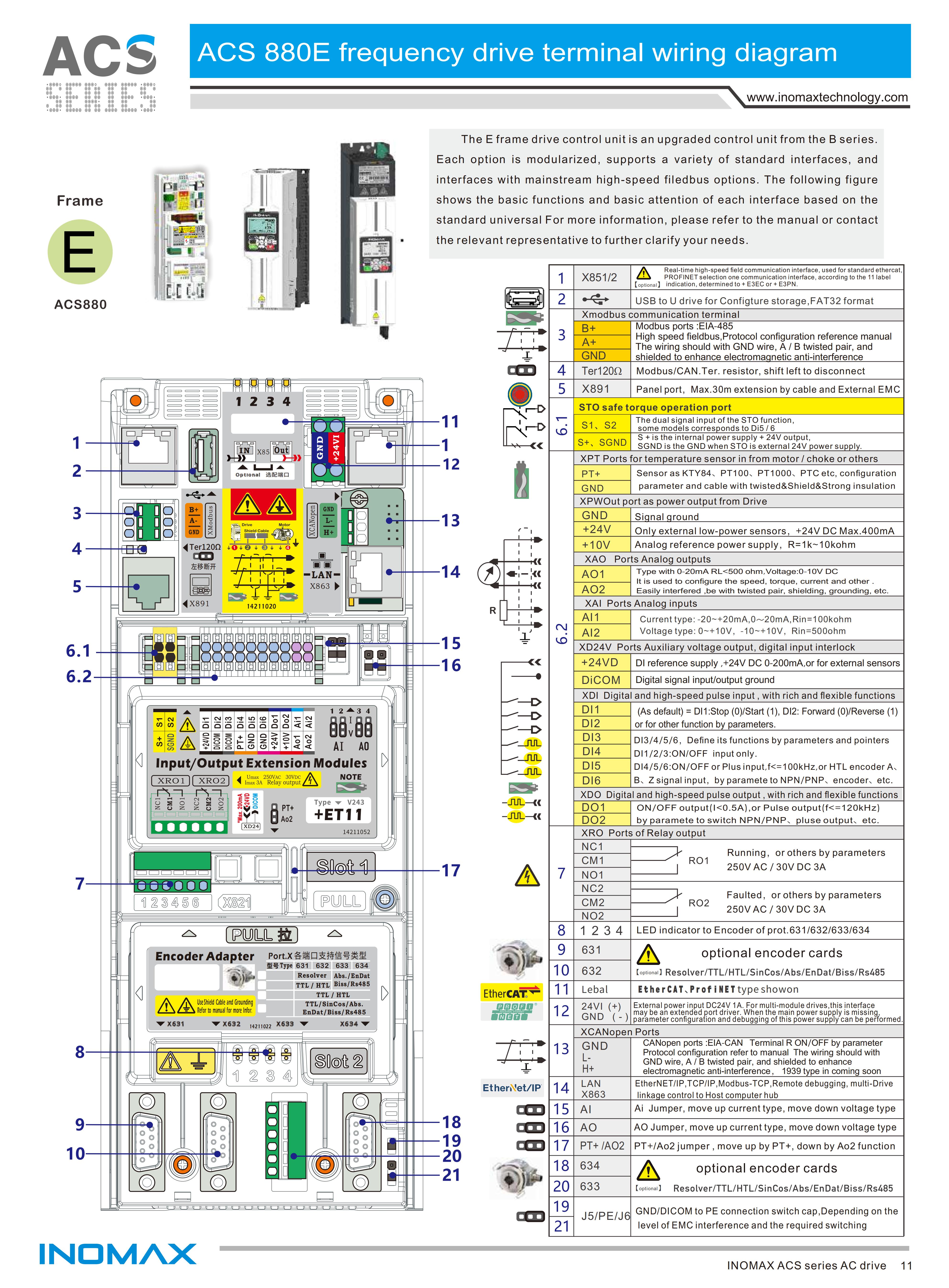

| I/O (standard) | 3 x AI, 6 x DI, 2 x AO, 3 x RO |
| Encoder feedback | TTL, HTL, resolver, SinCos, EnDat, Hiperface, BiSS, SSI; two ports simultaneously |
| Fieldbus | Modbus RTU, CANopen (std); Profinet, EtherCAT, Profibus‑DP, Ethernet/IP (optional) |
| Safety | STO (Safe Torque Off) SIL3/PLe; optional SS1, SLS, SSM |
| Built‑in functions (free) | Energy optimizer, flux optimization, simple PLC, logic/math, multi-pump PID, sleep/wake, electronic cam, position control, master/slave, anti-sway, winder/unwinder, PCP/ESP macros |
| Ambient temperature | -15°C to +55°C (derating above 40°C) |
| Altitude | 1000m without derating; up to 4000m with 1%/100m derating |
| Vibration / humidity | <0.7g, <95% RH non‑condensing |
| Expected lifetime | >10 years, MTBF >500,000 hrs |
| Testing | 100% full‑load test with real motor (not simulation) |
| Defect rate | <1% annually |
7. Quality Assurance – Why Top Brands Trust INOMAX
| Quality Measure | Description |
|---|---|
| Automated production | German‑imported SMT lines, 100% in‑circuit testing (ICT) for every PCB |
| 3‑stage 100% inspection | Hardware (no missing screws/loose terminals); Function (every DI/DO/AI/AO/comm/protection tested with real motor); Performance (overload, overvoltage, undervoltage, phase loss, short circuit, thermal shutdown) |
| Certifications | CE, ISO9001, ISO14001, ISO45001, CCS (China Classification Society), RS, EAC |
| Key partners | SANY, XCMG, CRRC, Shougang Group, ZPMC, SIEMAG TECBERG, CNPC, OCP, NLMK, IR, PNT, AVL, ZF, Huawei, Jiatie |
8. Direct Replacement Cross‑Reference: INOMAX ACS880 ↔ ABB ACS880 & Vacon NXP
8.1 INOMAX ACS880 ↔ ABB ACS880 Wall‑Mounted
| ABB ACS880 Model | INOMAX ACS880 Equivalent | Power (kW) | Voltage |
|---|---|---|---|
| ACS880-01-02A4-3 | ACS880-E22-03A3-3B | 0.75 | 380-480V |
| ACS880-01-03A3-3 | ACS880-E22-03A3-3B | 1.1 | 380-480V |
| ACS880-01-04A0-3 | ACS880-E23-05A6-3B | 1.5 | 380-480V |
| ACS880-01-05A6-3 | ACS880-E23-05A6-3B | 2.2 | 380-480V |
| ACS880-01-07A2-3 | ACS880-E24-09A8-3B | 3.0 | 380-480V |
| ACS880-01-09A4-3 | ACS880-E24-09A8-3B | 4.0 | 380-480V |
| ACS880-01-12A6-3 | ACS880-E25-12A6-3B | 5.5 | 380-480V |
| ACS880-01-017A-3 | ACS880-E26-017A-3B | 7.5 | 380-480V |
| ACS880-01-025A-3 | ACS880-E27-025A-3B | 11 | 380-480V |
| ACS880-01-032A-3 | ACS880-E32-032A-3B | 15 | 380-480V |
| ACS880-01-038A-3 | ACS880-E33-038A-3B | 18.5 | 380-480V |
| ACS880-01-045A-3 | ACS880-E34-045A-3B | 22 | 380-480V |
| ACS880-01-061A-3 | ACS880-E42-061A-3B | 30 | 380-480V |
| ACS880-01-072A-3 | ACS880-E43-072A-3B | 37 | 380-480V |
| ACS880-01-087A-3 | ACS880-E44-087A-3B | 45 | 380-480V |
| ACS880-01-105A-3 | ACS880-E52-105A-3B | 55 | 380-480V |
| ACS880-01-145A-3 | ACS880-E53-145A-3B | 75 | 380-480V |
| ACS880-01-169A-3 | ACS880-E54-169A-3B | 90 | 380-480V |
| ACS880-01-206A-3 | ACS880-E62-206A-3B | 110 | 380-480V |
| ACS880-01-246A-3 | ACS880-E63-246A-3B | 132 | 380-480V |
| ACS880-01-293A-3 | ACS880-E72-293A-3B | 160 | 380-480V |
| ACS880-01-363A-3 | ACS880-E73-363A-3B | 200 | 380-480V |
| ACS880-01-430A-3 | ACS880-E74-487A-3B | 250 | 380-480V |
For ABB ACS880-07/17/37 cabinet and multi-drive units, please contact us with your exact model for a modular kit solution (BLM + SMM + AFE).
8.2 INOMAX ACS880 ↔ Vacon NXP Replacement
| Vacon NXP Model | INOMAX ACS880 Equivalent | Power (kW) | Voltage |
|---|---|---|---|
| NXP00012-3 | ACS880-E22-03A3-3B | 1.5 | 380-480V |
| NXP00025-3 | ACS880-E24-09A8-3B | 4.0 | 380-480V |
| NXP00055-3 | ACS880-E26-017A-3B | 7.5 | 380-480V |
| NXP00110-3 | ACS880-E33-038A-3B | 18.5 | 380-480V |
| NXP00220-3 | ACS880-E44-087A-3B | 45 | 380-480V |
| NXP00320-3 | ACS880-E53-145A-3B | 75 | 380-480V |
| NXP00450-3 | ACS880-E63-246A-3B | 132 | 380-480V |
| NXP00650-3 | ACS880-E73-363A-3B | 200 | 380-480V |
| NXP00900-3 | ACS880-R85-760A-3+… | 250-315 | 380-480V |
| NXP01300-3 | ACS880-R87-950A-3+… | 400-500 | 380-480V |
| NXP AFE 100kW | ACS880 AIM+ALM 110kW | 110 | 380-480V |
| NXP AFE 250kW | ACS880 AIM+ALM 280kW | 280 | 380-480V |
| NXP Common DC Bus (2 inverters) | ACS880 R8 BLM + 2×SMM | 45-500 | 380-690V |
| NXP00220-LCL (liquid) | ACS880-LR8-0220-6 | 220 | 690V |
| NXP00450-LCL (liquid) | ACS880-LR8-0450-6 | 450 | 690V |
| NXP00650-LCL (liquid) | ACS880-LR8-0630-6 | 630 | 690V |
Retrofit notes: Same mounting templates, terminal assignments, and communication mapping. Free PC tool (DriveStudio) converts ABB/Vacon parameter files to INOMAX format.
9. Frequently Asked Questions (FAQ)
Q1: Can I directly replace an ABB ACS880 with INOMAX ACS880 without changing the panel layout?
Yes. The INOMAX ACS880 wall-mounted series shares the exact same drilling template, input/output terminal positions, and overall dimensions as ABB ACS880-01. Cabinet modules fit standard 19″ or 600/800mm deep cabinets. For Vacon NXP, the same mechanical compatibility applies.
Q2: What about communication protocols – does INOMAX support Profinet, EtherCAT, and Profibus‑DP?
Yes. Standard drives come with Modbus RTU and CANopen. Optional plug-in cards add Profinet, EtherCAT, Profibus‑DP, and Ethernet/IP. We also support Vacon NXP’s CANopen object dictionary for seamless replacement.
Q3: Is the built‑in PLC free, or do I need to purchase a license?
All built‑in PLC, logic/math functions, and industry-specific macros (crane anti-sway, winder/unwinder, PCP/ESP, multi-pump) are included free of charge – no license fees.

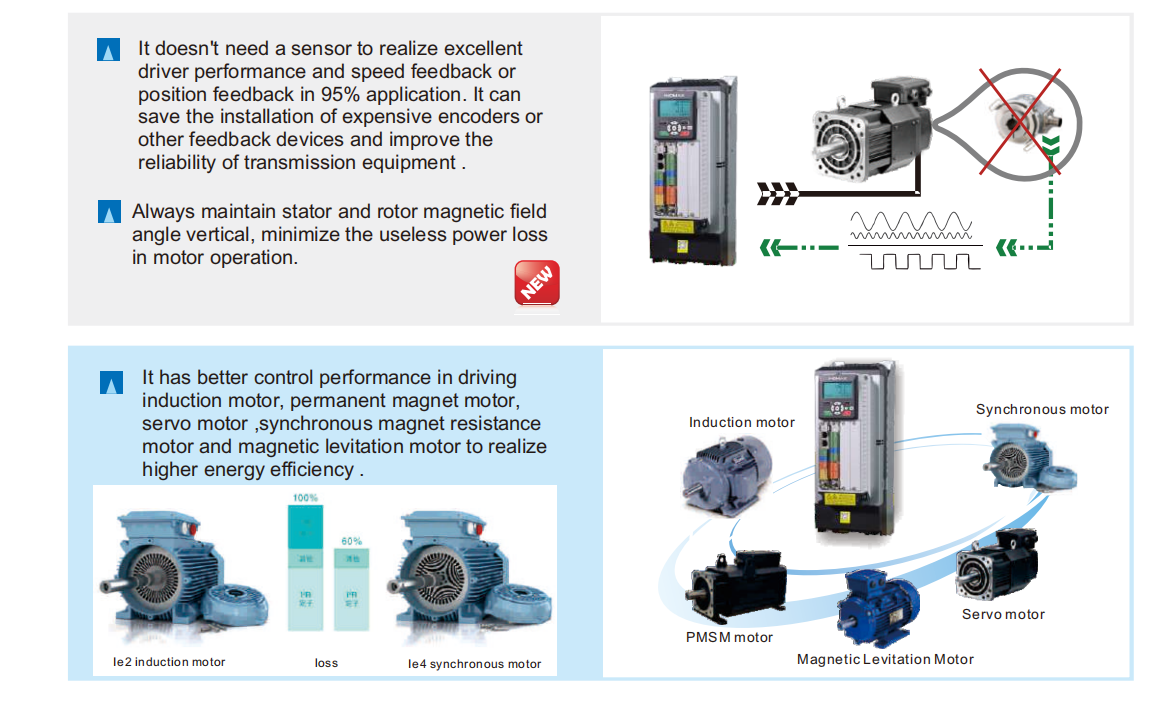

Q4: Can INOMAX ACS880 be used for permanent magnet motors without an encoder?
Absolutely. DTC provides 200% torque at zero speed even with PM motors, sensorless. For high-precision positioning, encoder feedback is supported.
Q5: What is the typical lead time for INOMAX ACS880 compared to ABB?
Standard wall-mounted units up to 250kW: 2–3 weeks. Cabinet and multi-module drives: 4–6 weeks. ABB and Siemens often have 16–30 week lead times.
Q6: Are INOMAX drives certified for marine applications?
Yes. The ACS880 series is CCS (China Classification Society) certified. We have supplied AFE drives for thrusters, windlasses, and shaft generators on hundreds of vessels including scientific research ships and crane ships.
Q7: How does the price compare to ABB and Vacon?
Typical savings are 30–50% for the same power and feature set. Because we are a direct manufacturer with no brand premium, you get European-level technology at Chinese cost.
Q8: Do you offer liquid‑cooled drives for high power or harsh environments?
Yes. Our L8 series liquid‑cooled drives cover 45kW to 2000kW+ (690V). They are ideal for marine propulsion, high-power test benches, and dusty environments where air cooling is insufficient.
Q9: Can I use INOMAX ACS880 for a dynamometer test bench?
Absolutely. We are a preferred supplier for dynamometer and motor test bench applications. AFE regenerative drives provide <3% THDi and 98% energy feedback. AVL and ZF are our partners.
Q10: What after-sales support do you provide for international customers?
We offer remote commissioning via VPN/TeamViewer, on-site support through local partners in many countries (Southeast Asia, Middle East, Africa, South America), and a 24-month warranty. Spare parts are stocked in Shenzhen for fast shipment.
Q11: Can I get a sample drive for testing before large quantity order?
Yes. We support sample orders and provide engineering support to help you validate the replacement. Contact us with your current drive model and application details.
Q12: How do I migrate parameters from an existing ABB or Vacon drive?
Our free PC tool DriveStudio can import parameter files (.xml, .csv) from ABB and Vacon and convert them into INOMAX format. Most applications can be migrated in under 30 minutes.
Q13: Does INOMAX ACS880 support flying shear and electronic cam for metal cutting lines?
Yes. The ACS880 has built‑in electronic cam, position control, and flying shear functions – no external motion controller needed. Used successfully in slitting lines and cut‑to‑length lines.
Q14: What is the typical lifespan of an INOMAX AC drive?
With high-quality components (Infineon IGBTs, TI DSP, German conformal coating, Japanese fans) and strict quality control, the expected service life is >10 years under normal operating conditions.
Q15: Are there any hidden costs like mandatory software licenses or paid firmware updates?
No. All firmware updates and software tools are free. We believe in transparent pricing.
10. Contact Us
Ready to replace ABB, Vacon, or Siemens at 30–50% less cost? Contact us for a free technical consultation, sample testing, or cross‑reference of your current drive model.
