ACSMX series high performance servo drive High dynamic torque and speed response, high torque and speed accuracy, higher and faster positioning and positioning accuracy, more convenient and intuitive debugging interface, more flexible parameter pointer programming applications, higher reliability throughout the life cycle Sex. Servo controller for dynamic control of motion. It can support a variety of machine axes for easy, fast and accurate positioning, especially the machine tool spindle, which can achieve precise stop, fast tool change, rigid tapping and other functions. It is also particularly suitable for: continuous material processing and packaging industry, paper hole punching in the printing industry, winding and storage technology in the textile industry (on-site logistics handling and positioning systems and mobile drives
The AST7000 is a newly developed built-in bypass soft starter and is a complete motor starting and management system. Many impressive features are concentrated on an easy-to-use product, the motor use can be easier.
AST9000 On-line intelligent motor starting control cabinet is a high-performance product specially developed for the starting, stopping and protection of squirrel-cage three-phase asynchronous motors, with built-in circuit breaker (optional), complete functions, simple operation.
We offer customized AC drives for Air suspension, magnetic levitation, super multi-pole logarithm, ultra-high subdivision and other innovative motor drives with high support capabilities, specific technical implementation effects and industry application cases and experience,we will offer you excellent solution based on our strong ability of R&D team and considerate service.
DC reactor is used to improve the input power factor of the inverter power supply and reduce harmonics.Install DC-reactor when the power supply capacity is 500 kVA or more and the power supply capacity is 10 times or more than that of the inverter's capacity, or when a distortion generating source such as a thyristor or a large-capacity inverter is connected to the same wiring leads.

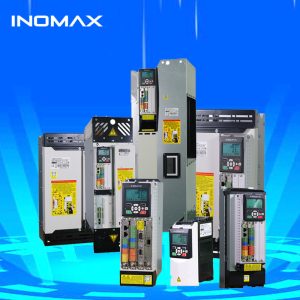

INOMAX DTC drive with leading energy efficiency, excellent performance (sensorless application), perfect replacement for closed loop vector control (non-position control), full AC motor efficient and reliable drive with low speed PM motor for direct drive, support for mainstream communication protocols Advantages: lifting , crimping applications, petroleum screw pumps, electric submersible pumps, synchronous reluctance motor applications, permanent magnet synchronous motor applications, DC motor applications Power range: ACS880 series 380V 3.7-560 KW 690V 55-1400 KW

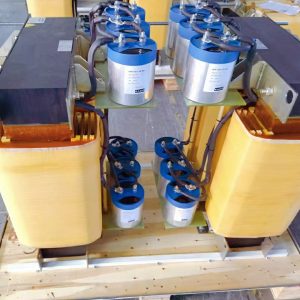

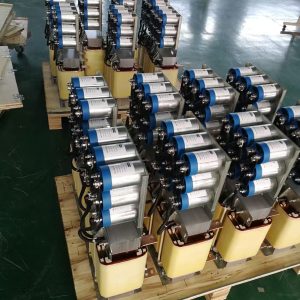

On systems that run 400 V class general-purpose motors by voltage-type PWM system inverters using ultra high-speed switching devices (e.g. IGBT), surge voltage, that is dependent on cable length, cable laying methods, cable constants, and other factors, sometimes causes the insulation of the motor winding to deteriorate. For this reason, measures for suppressing surge voltage are performed by installing a DC reactor or surge suppression filter on the inverter output end where the insulation-reinforced motor is used.
The sepcial motor tester system drives mainly to help achieve high-end applications of specialization, product original independent innovation and development: 1,Different types of structure, synchronous motor design, verification, mass production, motor parameters, motor performance, motor aging work test drive system (dynamometer) 2,All kinds of medium and high voltage motor tow test platform, high torque response high precision open loop drive, UDC bus voltage constant, electric energy very low harmonic feedback four quadrant function and characteristics. 3,All kinds of motor pre-assembled integrated, separate encoder installation accuracy and electrical performance detection and measurement applications.

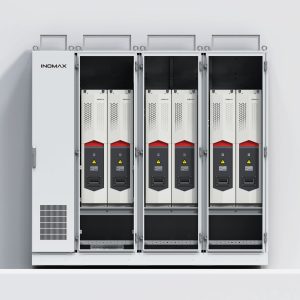

1,The structure is modular side-by-side installation, the top common UDC DC bus structure 2,The power supply part can be selected from basic diode rectifier module, IGBT intelligent rectification and feedback module (UDC constant function), inverter motor module, etc. 3,Performance has the key features of high energy efficiency, large torque at full speed, fast response, accurate position control, and stable torque and speed. 4,The system belongs to engineering type, Dafuyu large derating, high reliability design 5,For more detailed information and application, please contact our representative.
INOMAX VEC series new energy electric vehicle drives, relying on leading AC motor drive control technology, can achieve efficient, stable and reliable drive for various new energy vehicle motors, especially the drive control of permanent magnet synchronous motors, and improve the endurance and operation of new energy vehicles reliability The main technical highlights are as follows: 1 Leading in energy efficiency in the industry, the leading advantage of permanent magnet synchronous motor in energy efficiency is more obvious, improving the endurance of new energy vehicles. 2 Sensorless drive control technology reduces the sensor’s easy point of failure and improves the reliability of the vehicle; at the same time, it reduces sensor installation and maintenance costs. 3 Industry-leading permanent magnet synchronous motor field weakening control technology improves the electrical reliability of the vehicle. It applicable to all kinds of electric passenger vehicles, electric motorcycles, and electric forklifts. Compatible with synchronous and asynchronous motor. Also applicable to electric and hybrid electric vehicles (the rated voltage of power battery: 60-144V), such as mid-short distance passenger cars, tour buses, logistics vehicles, sanitation trucks, and material vehicles, etc.
A servo drive receives a command signal from a control system, amplifies the signal, and transmits electric current to a servo motor in order to produce motion proportional to the command signal. Typically, the command signal represents a desired velocity, but can also represent a desired torque or position. A sensor attached to the servo motor reports the motor's actual status back to the servo drive. The servo drive then compares the actual motor status with the commanded motor status. It then alters the voltage, frequency or pulse width to the motor so as to correct for any deviation from the commanded status. In a properly configured control system, the servo motor rotates at a velocity that very closely approximates the velocity signal being received by the servo drive from the control system. Several parameters, such as stiffness (also known as proportional gain), damping (also known as derivative gain), and feedback gain, can be adjusted to achieve this desired performance. The process of adjusting these parameters is called performance tuning. Many servo motors require a drive specific to that particular motor brand or model, but Inomax servo drive are compatible with a wide variety of motors.. ACSMX series servo system with excellent performance and powerful functions. Complete specifications, covering 1.5kW~1400kW capacity. Simple commissioning and reliable operation to meet customer control needs.
Advantage of inomax solar off-grid inverters
- Advanced Syn.R.M. and PMSM Driving Technology;
- Wide-range and High Efficiency MPPT Technology;
- Various Specific Functions for Solar Pumping;
- Intelligent IOT;
- Functional Monitoring Software;
- Flexible and Various Installation;
