Introduction of Inomax middle voltge ,high voltage soft starters:
Inomax MAX-MVSS series high voltage solid state soft starter is designed to solve the problems of electrical shock and mechanical shock during the starting process of medium and high voltage AC motors. It adopts high-voltage thyristor series technology and full digit .
The control of the voltage applied to the motor by means of adjustments to the firing angle of thyristors allows the soft-starter to start and stop an electric motor smoothly, also allowing the reduction of impacts of inrush current on the power supply and impacts of mechanical shocks on the load and the coupling. Thus, is possible to elimiante the inrush current to the power supply and the mechanical schocks for the load up to the couplings.
Voltage Range
2KV
2.4KV
3KV
3.3KV
4.16KV
6KV
6.6KV
10KV
11KV
13.8KV
15KV
Power Range
100 KW-50000 KW
150 HP-75000 HP
Avaliable Protections
Under/overcurrent and current imbalance, under/overvoltage and voltage imbalance, under/overtorque and active overpower, phase loss, inverted phase sequence, power arm overtemperature, motor overload, motor overtemperature (optional), external fault, ground fault by voltage or by current, power arm faults, power contactor faults, control board faults, communication fault of the HMI and between control boards, communication network faults, programming error.
Advantages
■ 6 modes of smooth starting/stopping preprogrammed, (which uses the vector control and control of direct torque concepts, based on technologies developed and applied for the vector frequency inverters) providing a linear speed ramp according to the load type applied to the motor;
■ User friendly configuration and operation;
■ Oriented Startup function presents minimum programming sequence to commence the operation;
■ Motor protection built-in in the standard cabinet (eliminating the need of extra protection relays);
■ Ground Fault Protection – Standard;
■ Input secctioning/protection integrated (line contactor or circuit breaker);
■ Heavy duty design up to 50 °C ambient temperature;
■ Reduction of power demand during the starting;
■ Reduction of inrush current on the power supply during the starting; ■ Reduction of mechanical shocks during the starting;
■ Reduction of mechanical stress on the load and on the coupling;
■ Increase the desing life of the motor, mechanical and electrical systems;
■ Standard/customized project under customer requirements following the application characteristics.
Main Characteristics
■ Power Range: 300 HP up to 16.300 HP (235kW up to 12.200 kW);
■ Motor Voltage: 2.3 kV up to 13.8 kV;
■ Output current: 70 A, 125 A, 180 A, 250 A, 300 A, 360 A, 400 A, 500 A e 600 A (other power / output currents – please consult);
■ Main input: switch + contactor (fixed) / circuit breaker (withdrawable) (medium voltage fuses for the input protection, for the switch + contactor configuration);
■ Integrated bypass: contactor (fixed) / circuit breaker (fixed) (main and bypass contactors/circuit breakers: vacuum insulated);
■ Main and Bypass vacuum contactors/circuit breakers able to perform DOL start;
■ Protection degree: IP41, IP54 and NEMA 12 (option for outdoor solution – please consult);
■ Complete isolation between LV (control) and MV (power) compartments, communicating vía fiber optics;
■ Possibility to interconnect the power supply between the MAX-MVSS with electrical bars;
■ Frontal access (no need of back access);
■ Easy installation and suitable for retrofits;
■ 310.000 hours MTBF; 8 hours MTTR;
■ Ground Fault Protection by Voltage or by Current;
■ Active protection for the motor in DOL mode;
■ 6 start modes: torque control, pump control, current ramp, voltage ramp, current limit, arranque directo;
■ Operating interface (HMI) with graphic LCD;

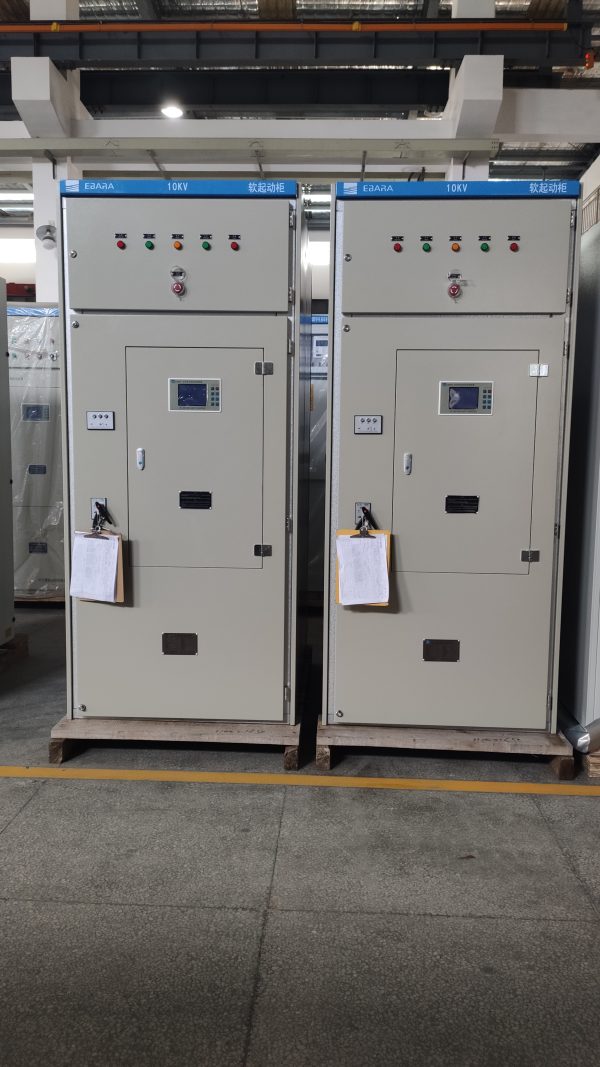

Production Line:
Product inside details
Part of OEM customers
